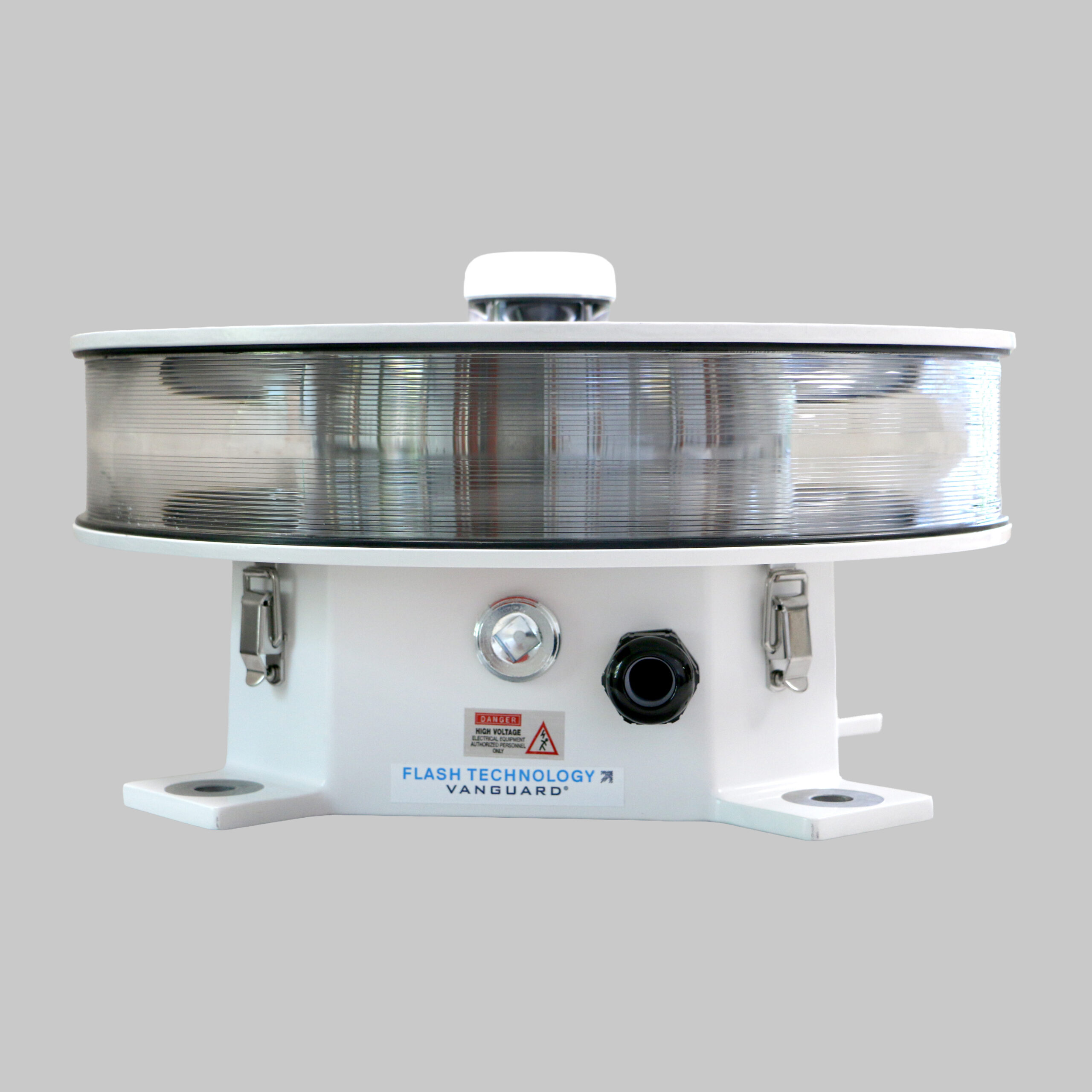

FTS 370i-2 Vanguard Integrated Wind Turbine Lighting

L-864 LED Obstruction Lighting System for Wind Energy Turbines

The Vanguard Medium FTS 370i-2 IR is available as an FAA L-864 or ICAO Type B medium intensity aircraft warning light. Since it is an integrated system, no external system controller is required. Utilizing red LEDs and infrared LEDs, the design creates a perfect solution for wind turbine lighting systems.



For wind turbines with a rotor tip height between 500’ and 700’, two Vanguard 370i-2 IR units can be used together on one nacelle to meet FAA AC 70/7460-1L specifications. The Vanguard FTS 370i-2 IR features standard GPS synchronization to ensure proper flashing characteristics.



FTS 370i-2 Standard Features

  • NVG and NVIS compatibility using 850nm infrared (IR) LEDs
  • Patented Fresnel optics to minimize ground scatter
  • Aircraft Detection Lighting Systems (ADLS) interface
  • Versatile mounting options
  • Patented 360-degree light collector
  • Ruggedized GPS antenna for reliable synchronization
  • Field configurable flash characteristics
  • Single dry contact alarm conveys LED, sync and mode status
  • 5-year warranty



FTS 370i Optional Features

  • Additional overvoltage protection (OVP) device mounted inside the nacelle protects for lightning protection zone 1 (LPZ 1)
  • Adjustable mounting pedestal for mounting in variable mounting positions



Regulartory Compliance

  • FAA L-864 per AC 150/5345-43J
  • ICAO Annex 14 6th edition, medium intensity type B
  • DGAC L-864
  • CSA

Please fill out the form below or call 615.503.2000 with questions or to order this product.


  • Drop files here or
    Accepted file types: jpg, png, pdf.

    Input Voltage

    120-240 VAC

    Frequency

    50-60 Hz

    FH Dimensions

    15.75″ dia. x 7.31″ height
    (8.7″ to the top of GPS)
    400 dia. x 180.6 mm (220.7 mm top of GPS)

    FH Weight

    26.3 lbs (11.9 kg)

    FH Aerodynamic Wind Area

    99.125 in (63,900.51 mm2)

    Protection Rating

    IP66



    Night Power Consumption

    20 fpm

    30 fpm

    40 fpm

    L-864 red night at 2,000 ± 25% ECD flash intensity

    7 watts

    10 watts

    13 watts

    Power consumption is 2 watts in stand-by.

    Certifications

    FAA logoIntertek L864 FTS 370i-2 IR certification to FAA AC 150-5345-43J (476)
    ICAO logoICAO 6th Edition
    DGAC Mexico logoDGAC
    CSA logoCSA Certificate of Compliance FTS 370i and FTS 370i IR
    CE logoCE Declaration of Conformity FTS 370i
    Flash Technology is an ISO 9001:2015 certified manufacturing facility.Flash Technology is an ISO 9001:2015 manufacturing facility.



    Datasheet

    FTS 370i-2 datasheet
    FTS 370i-2 datasheet – Spanish
    Universal Mounting Bracket datasheet



    Current Manual

    Vanguard FTS 370i-2 Rev A
