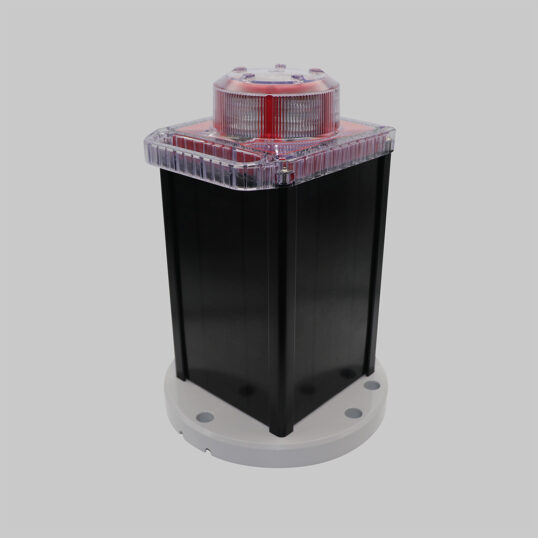

OL800 Solar LED Obstruction Light

FAA L-810 and Low Intensity ICAO Type A/B Applications

The OL800 solar LED is an integrated lighting solution including a high-efficiency LED light source, solar panels and battery.



Per section 13.8 of FAA AC 70/7460-1L: a steady-burning red L-810 is required during construction if the permanent flashing L-864 is not in place. If power is not available, structures should be lit with a self-contained, solar-powered, steady burning red LED light meeting the photometric requirements of an FAA L-810.



Created to meet requirements for FAA L-810, ICAO low intensity Type A/Type B and CAR 621 CL-810, the OL800 is easy to install. It requires minimal maintenance and is ideal for temporary installations like MET towers and during wind farm construction.



OL800 Solar LED Features

Flash Technology offers two OL800 options. For help deciding which is the best fit for your site, please contact your sales representative.



OL800 CompactOL800 Standard
  • 9.9 lbs (4.5 kg)
  • 63 Wh battery pack
  • Suitable for at least 7 days of autonomy in mid to high sun locations
  • 14 lbs (6.4 kg)
  • 100 Wh battery pack
  • 7-10 days battery autonomy
  • Reliable solar obstruction lighting over a wider geographical range

Please fill out the form below or call 615.503.2000 with questions or to order this product.


Temperature

-40 to 176 °F (-40 to 80 °C) maximum

-22 to 122 °F (-30 to 50 °C) optimal

Weight

Compact – 9.9 lbs. (4.5 kg)
Standard – 14 lbs. (6.4 kg)

Battery

Compact – X-cells (63 watt-hour)
Standard – E-cells (100 watt-hour)

Mounting

3 or 4 hole, 7.87″ (200 mm) bolt circle mounting pattern

Dimensions

12.9″ height

9.25″ diameter

Wind Loading

140 knots (72 m/s)

Ice Loading

0.03 PSI (22kg/m²)

Optical

High-powered LEDS meet IES LM-80 lumen maintenance ensuring consistent photometrics for life of product
Meets requirements for CASA 10 Cd (part 139, Vol 2)
Steady-on and 250+ flash patterns

Energy Storage

EnerSys CYCLON pure-lead VRLA AGM battery -85 to 176°F (-65 to 80°C) manufacturers operating range
On-board battery status
Designed for 5-year battery life; Replaceable and recyclable

Construction

Premium grade UV resistant, polycarbonate lens/head
Environmentally friendly, durable powder coated aluminum chassis (applied by trivalent chromate process)
Thermoplastic gaskets
Waterproof, vented battery compartment
Integrated handle
Bird deterrent included

Automatic Light Control

Can be turned on or off to adjust output intensity in response to unusually low amounts of sunlight to ensure continued operation

GPS Synchronization

Optional GPS enables two or more lights to flash in unison

Shock & Vibration

MIL-STD-202G

Ingress

EN 60529 IP 69 immersion
MIL-STD-202G immersion & damp heat cycling
MIL-STD-810G rain & salt fog

Electrostatic Discharge

FAA-STD-0193, EN6100-4-2

Certifications

Intertek OL800 Certification for FAA, CAR 621, CASA and ICAO standards



Datasheet

OL800 datasheet
OL800 datasheet – Spanish



Current Manual

OL800 User Manual Rev B (1.5MB)
OL800 User Manual – Spanish
Manuals for older product revisions can be found in the
Knowledge Base.



Quick Start Guide
