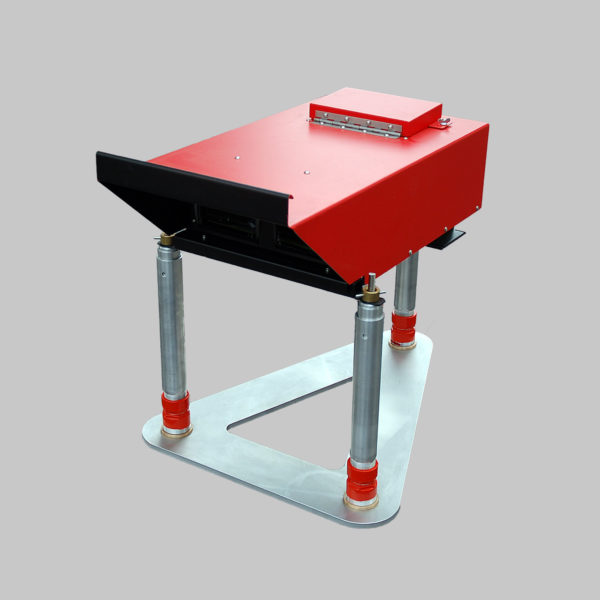

Helicopter Approach Path Indicator (HAPI)

ICAO, FAA and STANAG Compliant HAPI system
Categories: , , Tag:

HAPI (helicopter approach path indicator) systems provide pilots with a safe and accurate glide slope on final approach. Pilots can easily determine if their approach is too high, too low or correctly on-slope through combinations of red and green lights. Flash’s LED HAPI light is available in 2 basic models with multiple configuration options to meet ICAO, FAA and STANAG requirements.



Applications

  • Permanent helipads
  • Temporary helipads
  • Emergency helipads
  • Hospital helipads
  • Remote helipads
  • Military & NVG operations



Easy installation

The LED HAPI system works equally well in permanent or temporary locations. Permanent mounting is easy with standard frangible mounting. Temporary deployment is fast with retractable legs and a lightweight, compact form factor.



Advanced Optics

The HAPI light uses patented, LED-based optics to achieve the lowest power consumption, highest intensity and sharpest green/red transition. It exceeds ICAO, FAA and STANAG helipad requirements to provide a clear approach path to the aviator.



Power supply versatility

The low power consumption of the HAPI makes it mate well with several available power supplies:

  • Solar kit
  • Generator kit
  • Battery kit
  • AC only



Controllable

Optional wireless control provides remote operation using either 900 MHz or 2.4 GHz communication. There is also 3- and 5-step, wired control and local control available.



Trusted

Deployed around the globe, from military to civilian airfields and from South East Asia to Northern Europe, the HAPI lighting system has proven it is robust.

Please fill out the form below or call 615.503.2000 with questions or to order this product.

  • Drop files here or
    Accepted file types: jpg, png, pdf.

    Optical

    High-powered LEDs with proper heat management ensure consistent photometrics for life of product
    NVG-compatible infrared LEDs
    FAA AC 150/5390-2C HAPI compliant
    ICAO Annex 14, Volume 2 HAPI compliant
    STANAG HAPI compliant
    Ultra-low power consumption make solar possible

    Power Options

    Solar kit: Solar panels and mounting, batteries and enclosures; air transportable container; AC input for backup
    Generator kit: Gas or diesel generator; AC input for backup
    Battery kit: Batteries and enclosures; AC input for backup
    AC only: 100 – 240 VAC 50/60 Hz; 3 and 5-step current

    Control Options

    Non-Wireless: AC input of 3 and 5-step current; local control
    Wireless: 900 MHz FHSS with encryption
    Wireless: 2.4 GHz DSSS with encryption

    Construction

    Powder-coated aluminum chassis
    Aviation orange standard, yellow and other colors available
    Stainless steel and anodized aluminum hardware
    Integrated digital level
    Optical glass lens

    Temperature

    100 mph (161 kph)

    Wind Loading

    -31 to 131 °F (-35 to 55 °C ) ambient

    Ingress

    NEMA 4 & EN 60529 IP 55 (IP 66 available with marine upgrade kit)

    CONFIGURATION

    Mounting

    Permanent
    Portable

    Output

    Visible
    Visible / IR

    Power

    Solar kit
    Generator kit
    Battery kit
    AC

    Control

    Non-wireless
    Wireless (900 MHz)
    Wireless (2.4 GHz)

    Datasheet

    HAPI datasheet



    Current Manual

    HAPI manual
    HAPI portable system manual
