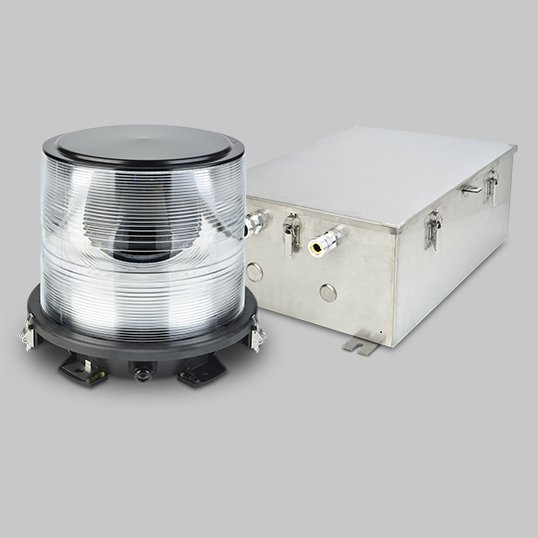

FT 736 Omnidirectional Heliport Beacon

Category:

Designed to assist heliport acquisition by helicopter pilots flying in the vicinity, Flash Technology’s FT 736 is an omnidirectional heliport beacon that emits a distinctive, flashing white light transmitting the Morse code for “H.” This flashing pattern readily distinguishes this beacon from other lighting in the area. Switchable to three intensities, the FT 736 is appropriate for day, twilight and night operations.



FT 736 Heliport Beacon Features

  • Flashing white omnidirectional beacon with three intensities
  • Distinctive Morse code “H” flash sequence of 4 flashes spaced 2/15 of a second apart, grouped at 2-second intervals
  • Extensive instruction manual and drawings assist with installation
  • Trained technical staff and information on support programs are available though the Flash Technology’s National Operations Center (NOC)
  • Onsite training through Flash University is also available
  • Flash Technology meets the Buy American Act with all our airport lighting systems

Please fill out the form below or call 615.503.2000 with questions or to order this product.


High (Day Intensity)

12,000 ± 25% effective candelas (ECD)

Medium (Twilight Intensity)

2,000 ± 25% effective candelas (ECD)

Low (Night Intensity)

75 ± 25% effective candelas (ECD)

Flash Sequence

4 flashes spaced 2/15 of a second apart, grouped at 2-second intervals

Horizontal Beam Coverage

360°

Vertical Beam Coverage

17°

Power Converter

PC 736

Input Voltage

120, 208, 240 volt 60 Hz
230 volts 50 Hz
Single phase (specify on order)

Power Consumption

410 watts

Status Relay Contacts

Form C – contacts change state on fail

Datasheet

FTS 736 Datasheet



Current Manual

FTS 736-5 Manual Rev 2 (1.7MB)
Manuals for older product revisions can be found in the Knowledge Base.
