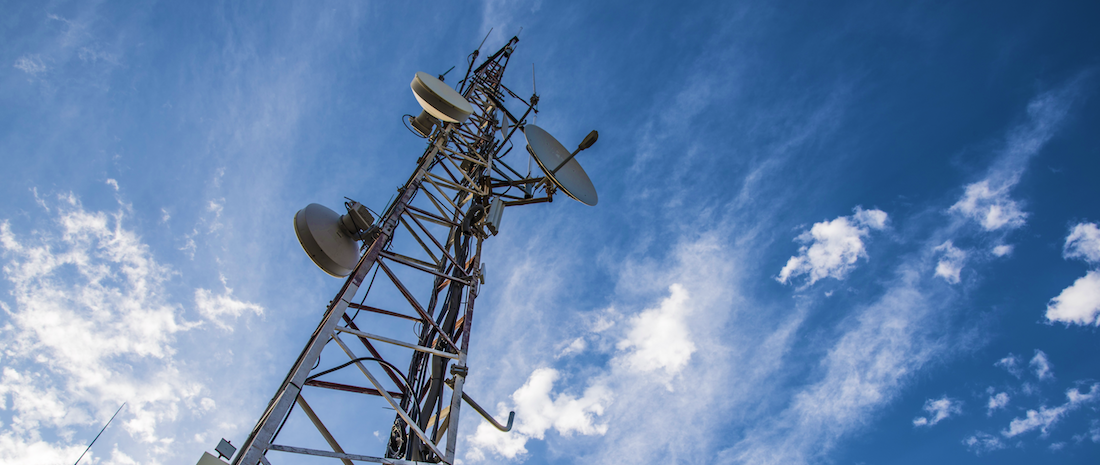

FTW 175 Verizon communications towers

Medium intensity cable 5991890 12AWG 3C - grey - full size - 538px

Medium Intensity AC Cable



This medium intensity AC cable is used with the 371 and 370r beacons as well as the 370 AC marker.



Specifications

  • Part number: 5991890
  • Temperature rating: -40°C to +90°C wet/dry
  • Cold bend at -40°C
  • Voltage rating: 600V RMS
  • Overall diameter: 0.435” nominal
  • Weight: 111 lbs/1000 ft
  • Length: Up to 750’, available in 50’ increments
  • UL type tray cable (type TC rated)



Construction

  • Jacket: Sunlight (UV) resistant, ozone resistant, flame retardant, black chlorinated polyethylene



AC marker cable 18awg diagram 4318000



Item Color
1Black
2White
3Green
